Blue Sea Systems
100A BusBar 5x2 Circuit
Κωδ. κατασκευαστή: 2701 · Κωδ. BLK: 782-0002
21,72 €22,63 €-4%
○ Κατόπιν παραγγελίας
Η τιμή περιλαμβάνει ΦΠΑ 24%.
- ✓Busbar for distribution
- ✓Max: 300VAC 100A
- ✓Max: 48VDC 100A
- ✓5 per bus screw terminals
- ✓Positive and negative distribution
- ✓Tin-Plated Copper
- ✓2 terminal studs
- ✓UL 94-V0 Rated
1
Περιγραφή

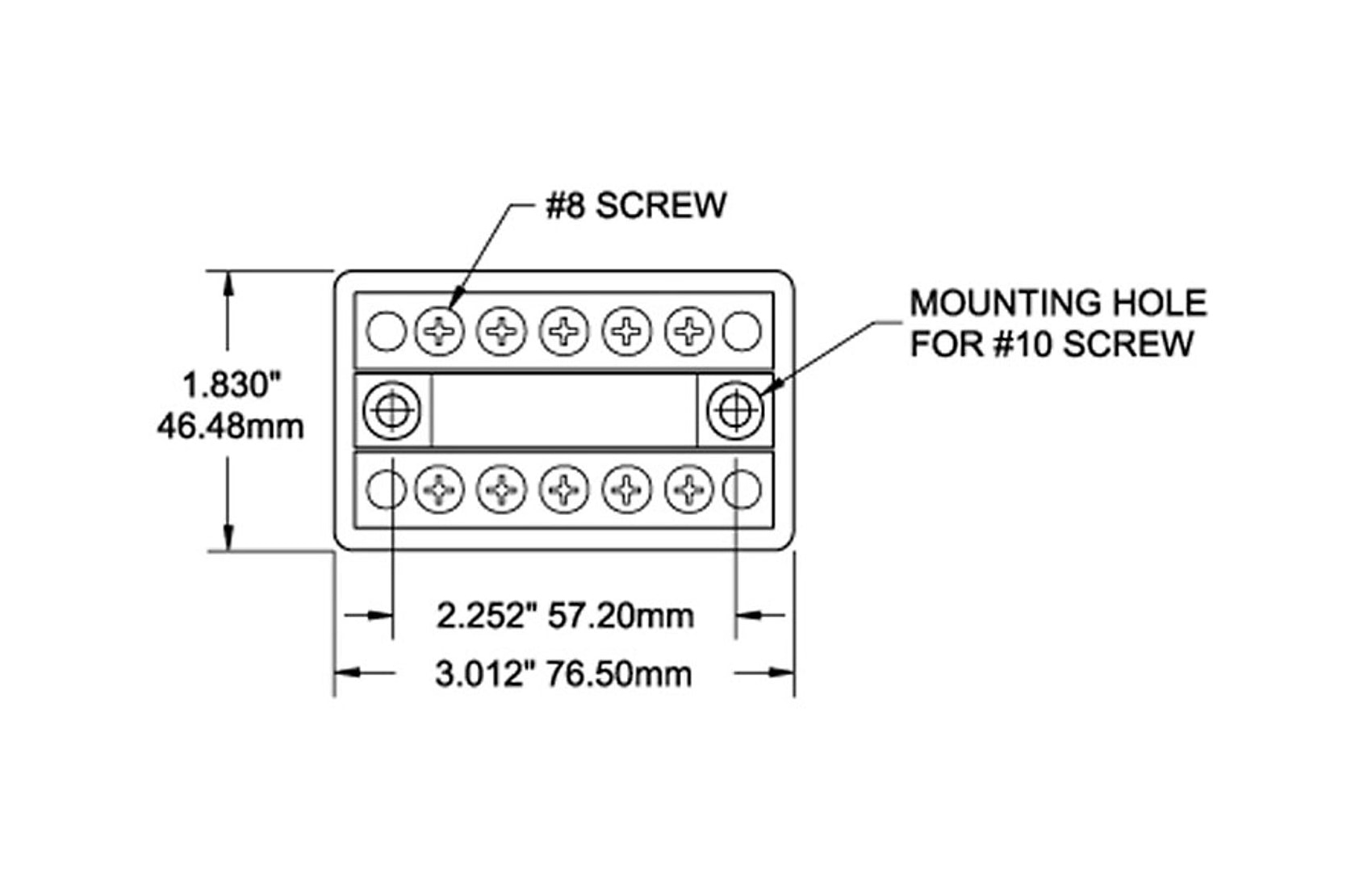

Combines negative and positive buses on one block. Specifications Maximum Voltage 300V AC 48V DC Number of Screw Terminals 5 per bus Terminal Type #8-32 Screw Continuous Rating 100A Base Material UL 94-V0 Rated, Glass Reinforced Thermoplastics Bus Material Tin-Plated Copper CDA 110 / UNS 11000 Screw Terminal Torque 15 in-lb (1.69 Nm) Height 5 ⁄ 8 in (15.88 mm) Weight 0.17lb (0.08 kg) Weight 0.21lb (0.1 kg)
Αρχεία & εγχειρίδια
BLKco-Brochure.pdfΧαρακτηριστικά
Suitable for
Car/boat/RV
Material
Electroplated Cooper
Extras Max
300VAC 100A, 48VDC 100A 10 screw terminals (5x2) Positive and negative distribution Tin-Plated Copper 2 terminal studs UL 94-V0 Rated. Warranty 3-Years Country of Origin USA
Total Weight (KG)
0.1
