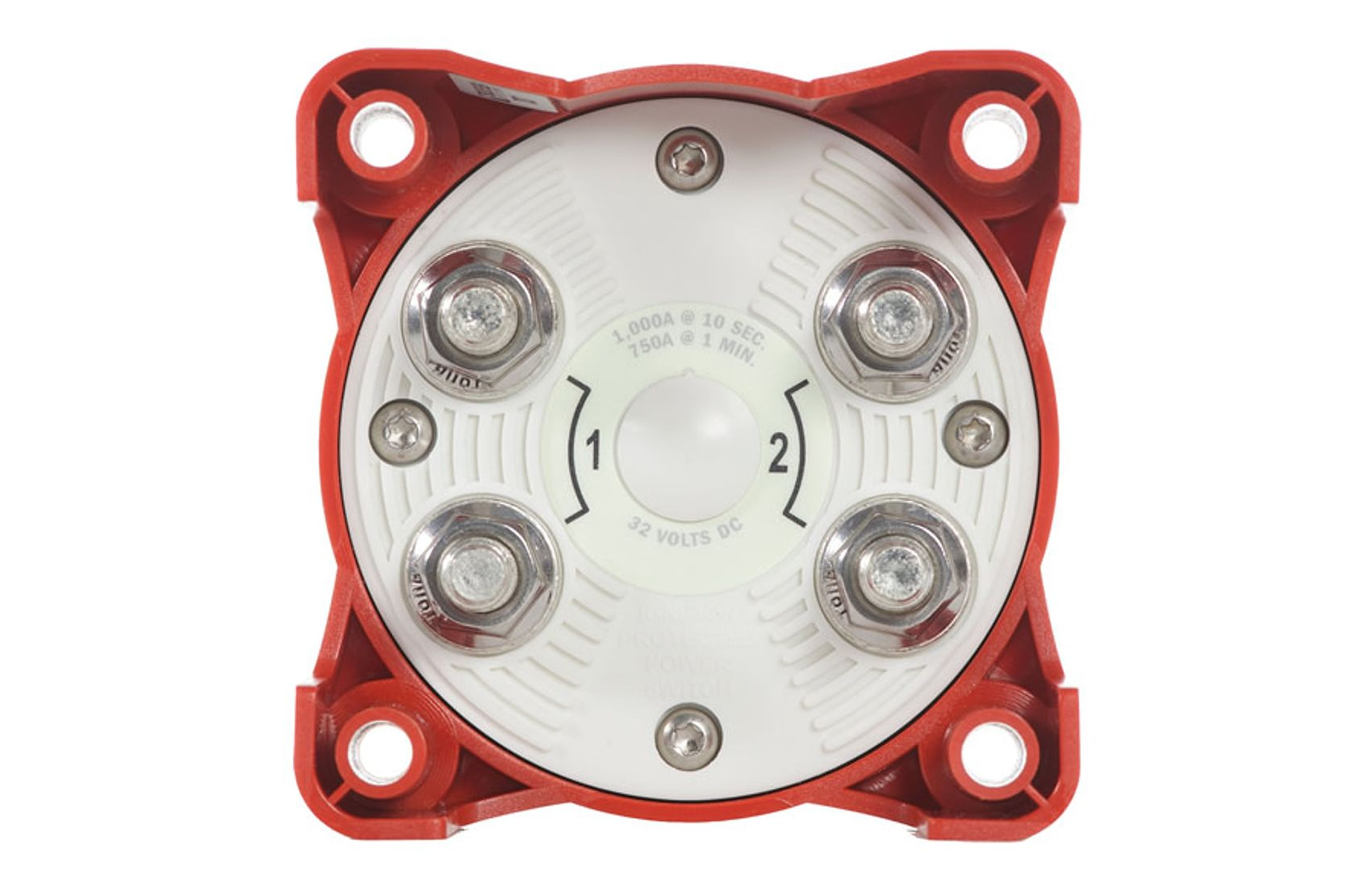

Dual Circuit Battery Switch
Κωδ. κατασκευαστή: 5510e
○ Κατόπιν παραγγελίας
Η τιμή περιλαμβάνει ΦΠΑ 24%.
- ✓Battery Switch
- ✓Max: 32V DC 350A
- ✓Cable size 4/0 AWG 120mm²
- ✓2 Positions
- ✓1/4" M6 Screw holes
- ✓Material: Tinned Copper
- ✓3/8" Stud size
- ✓Red color

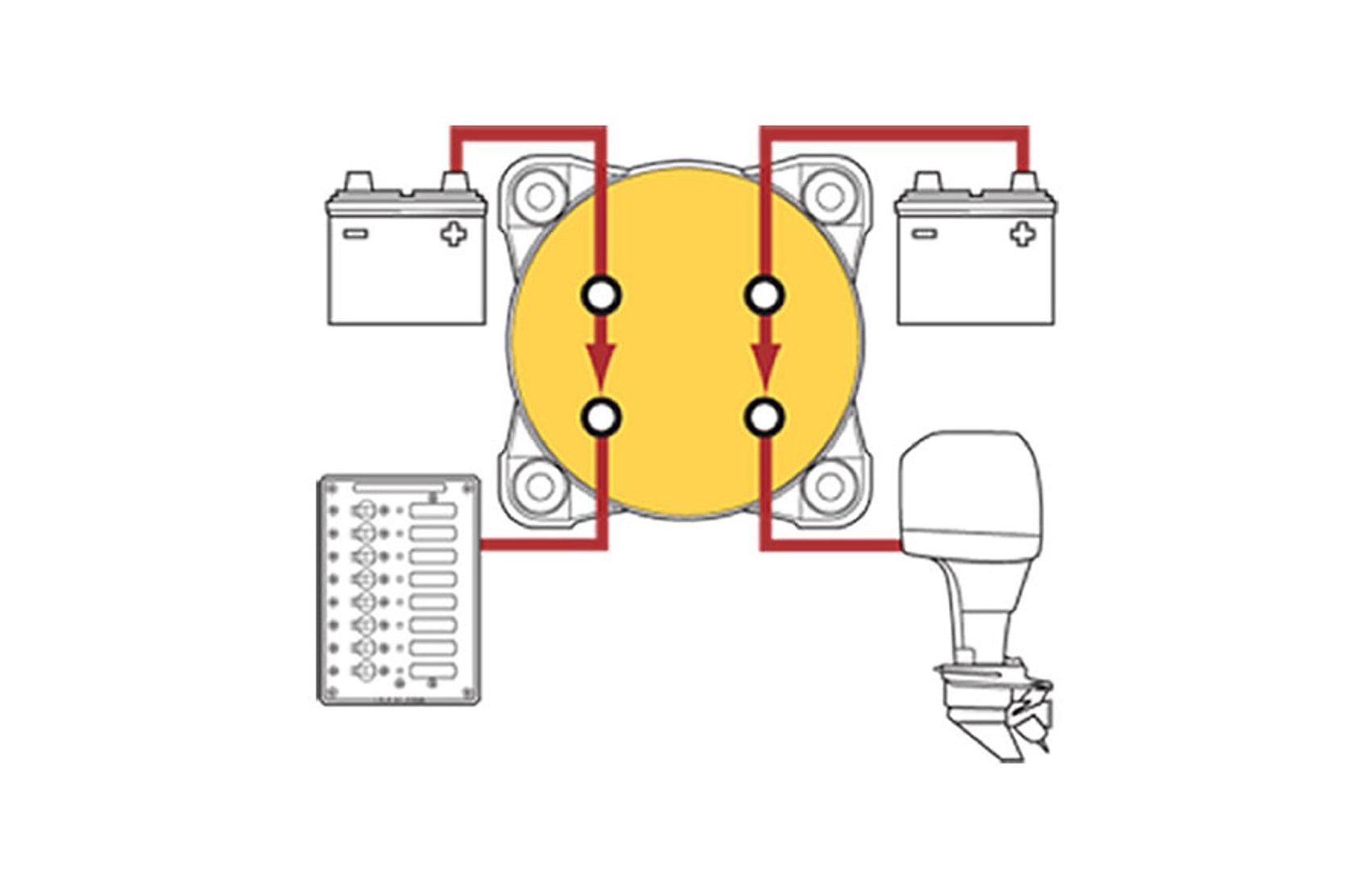

Simultaneously switches two isolated battery banks Ignition protected—safe for installation aboard gasoline powered boats Case design allows surface or rear panel mounting Specifications Switch Type Dual Circuit Color Red Switch Positions 2 Battery Combine No Alternator Field Disconnect No Maximum Voltage 32V DC Terminal Stud Torque 140 in-lb (15.82 Nm) Continuous Rating 350A Intermittent Rating 525A (5 min) Cranking Rating 30 sec 700A per circuit Battery Inputs 2 Cable Clearance For 4/0 AWG Cables 1.10in (27.94 mm) Cable Size to Meet Ratings 4/0 AWG (120mm²) Mounting Holes Accept 1/4" (M6) Screw Stud Material Tinned Copper Terminal Stud Size 3/8" - 16 (M10) Weight 1.16lb (0.53 kg) Weight 1.
